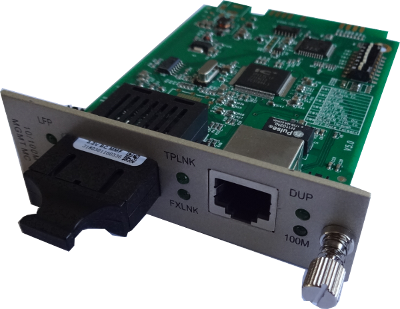

100M DUPLEX
 |
 |
| Symbol | Złącze | Mb/s | Zasięg | λ | MM/SM | Wykonanie | Temp. |

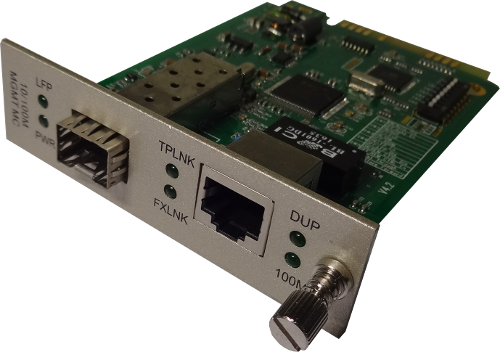

| 3C-SFP0101FMC | SFP | 100 | zależy od modułu SFP | karta | -15..+75°C | ||
| 3C-DU-100-13-2MC | SC, ST, FC | 100 | 2km | 1310 | MM | karta | -15..+75°C |
| 3C-DU-100-13-20MC | SC, ST, FC | 100 | 20km | 1310 | SM | karta | -15..+75°C |
| 3C-DU-100-13-40MC | SC, ST, FC | 100 | 40km | 1310 | SM | karta | -15..+75°C |
| 3C-DU-100-13-60MC | SC, ST, FC | 100 | 60km | 1310 | SM | karta | -15..+75°C |
| 3C-DU-100-15-80MC | SC, ST, FC | 100 | 80km | 1550 | SM | karta | -15..+75°C |
| 3C-DU-100-15-100MC | SC, ST, FC | 100 | 100km | 1550 | SM | karta | -15..+75°C |
100M WDM
| |
| Symbol | Złącze | Zasięg | Mb/s | λ | MM/SM | Wykonanie | Temp. |
| 3C-WDM-100-35-20MC | SC, ST, FC | 20km | 100 | 1310/1550 | SM | karta | -15..+75°C |
| 3C-WDM-100-53-20MC | SC, ST, FC | 20km | 100 | 1550/1310 | SM | karta | -15..+75°C |
| 3C-WDM-100-35-40MC | SC, ST, FC | 40km | 100 | 1310/1550 | SM | karta | -15..+75°C |
| 3C-WDM-100-53-40MC | SC, ST, FC | 40km | 100 | 1550/1310 | SM | karta | -15..+75°C |
| 3C-WDM-100-35-60MC | SC, ST, FC | 60km | 100 | 1310/1550 | SM | karta | -15..+75°C |
| 3C-WDM-100-53-60MC | SC, ST, FC | 60km | 100 | 1550/1310 | SM | karta | -15..+75°C |
| 3C-WDM-100-35-80MC | SC, ST, FC | 80km | 100 | 1310/1550 | SM | karta | -15..+75°C |
| 3C-WDM-100-53-80MC | SC, ST, FC | 80km | 100 | 1550/1310 | SM | karta | -15..+75°C |
| 3C-WDM-100-45-100MC | SC, ST, FC | 100km | 100 | 1490/1550 | SM | karta | -15..+75°C |
| 3C-WDM-100-54-100MC | SC, ST, FC | 100km | 100 | 1550/1490 | SM | karta | -15..+75°C |

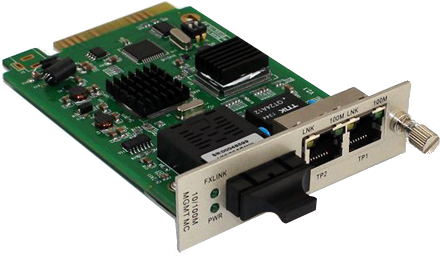

100M DUPLEX 2UTP
 |
| Symbol | Złącze | Zasięg | Mb/s | λ | MM/SM | Wykonanie | Temp. |
| 3C-DU-200-13-2MC | SC, ST, FC | 2km | 100 | 1310 | MM | karta | -15..+75°C |
| 3C-DU-200-13-20MC | SC, ST, FC | 20km | 100 | 1310 | SM | karta | -15..+75°C |
| 3C-DU-200-13-40MC | SC, ST, FC | 40km | 100 | 1310 | SM | karta | -15..+75°C |
| 3C-DU-200-13-60MC | SC, ST, FC | 60km | 100 | 1310 | SM | karta | -15..+75°C |
| 3C-DU-200-15-80MC | SC, ST, FC | 80km | 100 | 1550 | SM | karta | -15..+75°C |
| 3C-DU-200-15-100MC | SC, ST, FC | 100km | 100 | 1550 | SM | karta | -15..+75°C |
100M WDM 2UTP
| |
| Symbol | Złącze | Zasięg | Mb/s | λ | MM/SM | Wykonanie | Temp. |
| 3C-WDM-200-35-20MC | SC, ST, FC | 20km | 100 | 1310/1550 | SM | karta | -15..+75°C |
| 3C-WDM-200-53-20MC | SC, ST, FC | 20km | 100 | 1550/1310 | SM | karta | -15..+75°C |
| 3C-WDM-200-35-40MC | SC, ST, FC | 40km | 100 | 1310/1550 | SM | karta | -15..+75°C |
| 3C-WDM-200-53-40MC | SC, ST, FC | 40km | 100 | 1550/1310 | SM | karta | -15..+75°C |
| 3C-WDM-200-35-60MC | SC, ST, FC | 60km | 100 | 1310/1550 | SM | karta | -15..+75°C |
| 3C-WDM-200-53-60MC | SC, ST, FC | 60km | 100 | 1550/1310 | SM | karta | -15..+75°C |
| 3C-WDM-200-35-80MC | SC, ST, FC | 80km | 100 | 1310/1550 | SM | karta | -15..+75°C |
| 3C-WDM-200-53-80MC | SC, ST, FC | 80km | 100 | 1550/1310 | SM | karta | -15..+75°C |
| 3C-WDM-200-45-100MC | SC, ST, FC | 100km | 100 | 1490/1550 | SM | karta | -15..+75°C |
| 3C-WDM-200-54-100MC | SC, ST, FC | 100km | 100 | 1550/1490 | SM | karta | -15..+75°C |

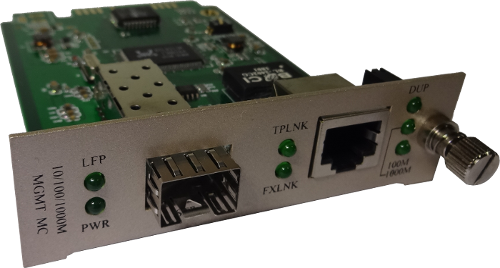

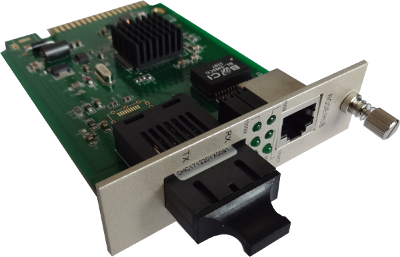

1G DUPLEX
 |
 |
 |
| Symbol | Złącze | Mb/s | Zasięg | λ | MM/SM | Wykonanie | Temp. |

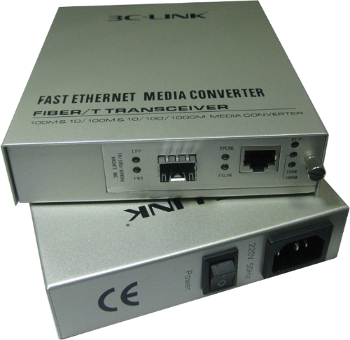

| 3C-SFP0101GSM | SFP | 1000 | zależy od modułu SFP | wolnostojące | -15..+75°C | ||
| 3C-SFP0101GMC | SFP | 1000 | zależy od modułu SFP | karta | -15..+75°C | ||
| 3C-DU-1000-85-0.5MC | SC, ST, FC | 1000 | 0.55km | 850 | MM | karta | -15..+75°C |
| 3C-DU-1000-13-20MC | SC, ST, FC | 1000 | 20km | 1310 | SM | karta | -15..+75°C |
| 3C-DU-1000-13-40MC | SC, ST, FC | 1000 | 40km | 1310 | SM | karta | -15..+75°C |
| 3C-DU-1000-13-60MC | SC, ST, FC | 1000 | 60km | 1310 | SM | karta | -15..+75°C |
| 3C-DU-1000-15-80MC | SC, ST, FC | 1000 | 80km | 1550 | SM | karta | -15..+75°C |
1G WDM
| |
| Symbol | Złącze | Zasięg | Mb/s | λ | MM/SM | Wykonanie | Temp. |
| 3C-WDM-1000-35-20MC | SC, ST, FC | 20km | 1000 | 1310/1550 | SM | karta | -15..+75°C |
| 3C-WDM-1000-53-20MC | SC, ST, FC | 20km | 1000 | 1550/1310 | SM | karta | -15..+75°C |
| 3C-WDM-1000-35-40MC | SC, ST, FC | 40km | 1000 | 1310/1550 | SM | karta | -15..+75°C |
| 3C-WDM-1000-53-40MC | SC, ST, FC | 40km | 1000 | 1550/1310 | SM | karta | -15..+75°C |
| 3C-WDM-1000-35-60MC | SC, ST, FC | 60km | 1000 | 1310/1550 | SM | karta | -15..+75°C |
| 3C-WDM-1000-53-60MC | SC, ST, FC | 60km | 1000 | 1550/1310 | SM | karta | -15..+75°C |
| 3C-WDM-1000-45-80MC | SC, ST, FC | 80km | 1000 | 1490/1550 | SM | karta | -15..+75°C |
| 3C-WDM-1000-54-80MC | SC, ST, FC | 80km | 1000 | 1550/1490 | SM | karta | -15..+75°C |
SFP/XFP/QSFP/CWDM/DWDM/OLP
 |
 |
 |
 |
 |
 |
| Symbol | Opis | Wykonanie | Temp. |

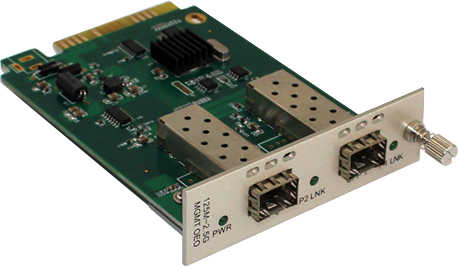

| 3C-SFP-SFP-1RC | Konwerter SFP/SFP 155M-4,25G 1R | karta | -15..+75°C |
| 3C-SFP-SFP-3RC | Konwerter SFP/SFP 155M-4,25G 3R | karta | -15..+75°C |

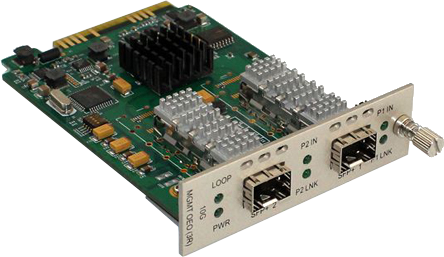

| 3C-OEO-SFP+-SFP+-RS16SM | Konwerter SFP+/SFP+ 10G 3R | karta | -15..+75°C |

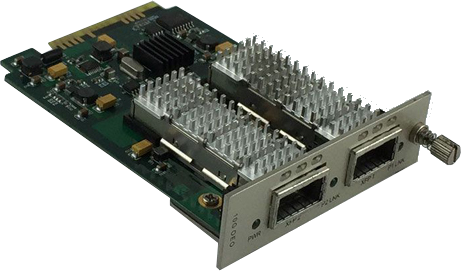

| 3C-OEO-XFP-XFP-1RC | Konwerter XFP/XFP 10G 1R | karta | -15..+75°C |
| 3C-OEO-XFP-XFP-RS16SM | Konwerter XFP/XFP 10G 3R | karta | -15..+75°C |
| 3C-OEO-SFP+-XFP-RS16SM | Konwerter SFP+/XFP 10G 3R | karta | -15..+75°C |
| 3C-MC-SFP+MC | Media Konwerter 10G SFP+/10G RJ45 | karta | -15..+75°C |
| 3C-OEO-QSFP-QSFPMC | Konwerter QSFP/QSFP 40G 3R | karta | -15..+75°C |

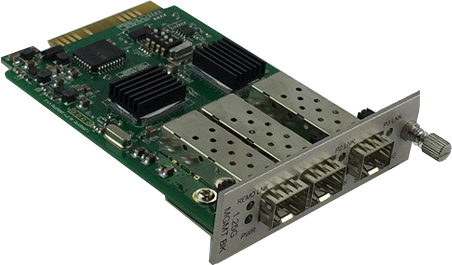

| 3C-OLP-2SFP-SFPMC | Karta protekcji optycznej 1+1 SFP/SFP 100M/1G | karta | -15..+75°C |

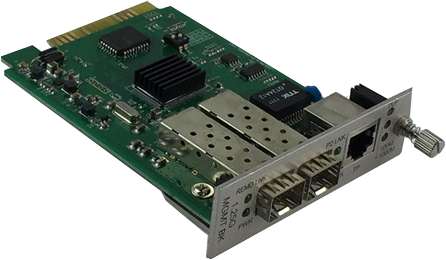

| 3C-OLP-2SFP-UTPGMC | Karta protekcji optycznej 1+1 SFP/UTP 100M/1G | karta | -15..+75°C |

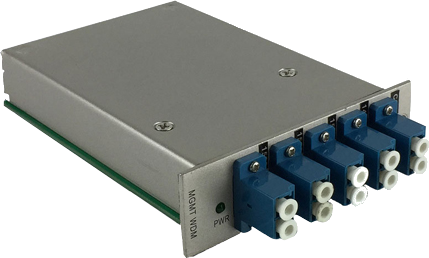

| 3C-CMUX-0401LMC | MUX lub DMUX 4 kanały CWDM z UPG | karta | -15..+75°C |
| 3C-CMUX-0801LMC | MUX lub DMUX 8 kanały CWDM z UPG | karta | -15..+75°C |
| 3C-DMUX-0401LMC | MUX lub DMUX 4 kanały DWDM z UPG | karta | -15..+75°C |
| 3C-DMUX-0801LMC | MUX lub DMUX 8 kanałów DWDM z UPG | karta | -15..+75°C |
Półki
 |
 |
| Symbol | Wersja | Ilość slotów | Zarządzanie | Obudowa | Zasilanie | Temp. | |
| Zakres | Rodzaj | ||||||

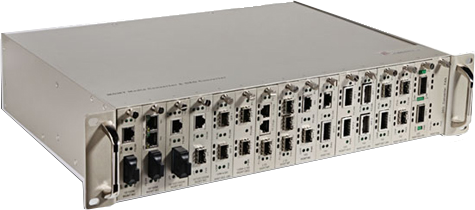

| 3C-MC-R16SM | Do kart | 16 | tak z kartą 3C-MC-R16SM-MC |
1U 19” | 48V DC lub 230V AC |
pojedyncze lub redundantne | -15..+75°C |

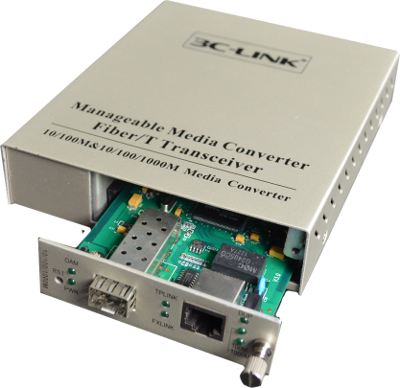

| 3C-MC-SH1G | Do karty 1G | 1 | zdalne w karcie | Mini wolnostojąca | 48V DC lub 230V AC |
pojedyncze | -15..+75°C |
| 3C-MC-SH10G | Do karty 10G | 1 | zdalne w karcie | Mini wolnostojąca | 48V DC lub 230V AC |
pojedyncze | -15..+75°C |
